Aim
In this markdown, we will perform cell-interaction analysis to try to identify critical ligands and receptors that are involved in the transcriptional response to Abatacept treatment. For this, we will use LIANA and Nichenet.
The questions we want to answer with this approach is: - Which ligands expressed by immune cells are most likely to induce the upregulation of inflammatory response genes in activated fibroblasts?
- Which ligands expressed/not expressed anymore by antigen presenting cells treated with Abatacept induce specific gene programs in T-cells or Macrophages.
More specific follow-up analysis can be performed according to the tutorials by the Nichenet authors:
https://github.com/saeyslab/nichenetr
In this short analysis, I am simply using Nichenet directly, but more integrated analysis with Omnipath and LIANA can be performed.
Load Seurat object
Let#s load our processed Seurat object first.
# Annotated seurat object
seurat_object <- readRDS(here("../data/2_annotated.seurat_object.rds"))Manually check expression of candidate ligands and receptors for Abatacept

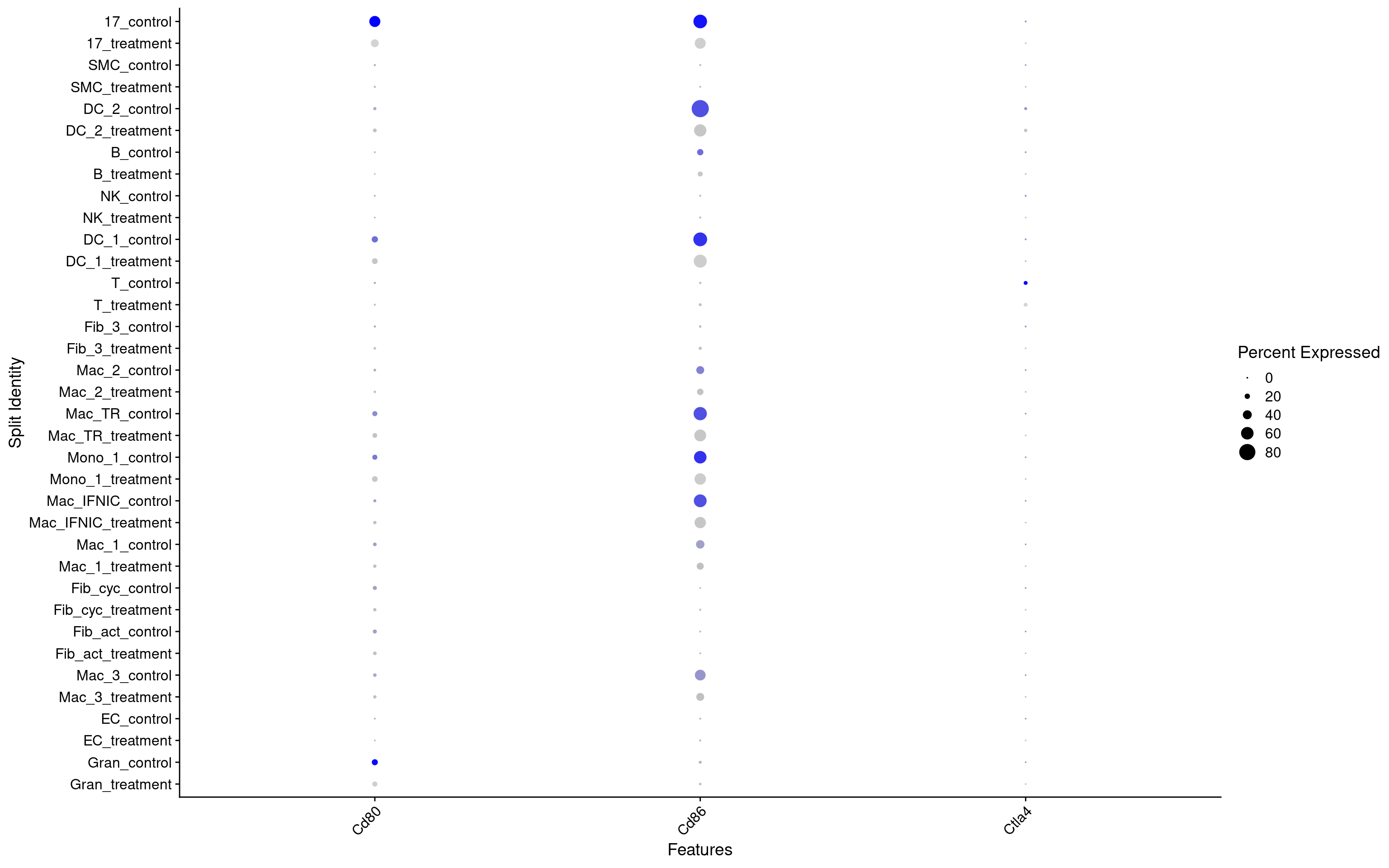

Let’s check the expression of the Ctl4a gene, which should be expressed pretty specifically in T-cells. We also check the expression of the canonical Ctl4a receptors Cd80/Cd86
## Let's check expression of CD80, CD86 and CTL4A in all cell types
DotPlot(seurat_object, features = c("Cd80","Cd86","Ctla4"), split.by = "group") + RotatedAxis()
The data confirms what we were expecting beforehand, that Ctl4a is specifically expressed by T-cells. The receptors Cd80/Cd86 seem to be expressed in many cell types, with Cd86 being expressed by more cells than Cd80, which seems specific to cluster 17, DC_1 and Granulocytes.
Nichenet
Now we will perform a Nichenet analysis, in which we will try to identify ligand-receptor interactions, that can explain gene expression differences in receiver cells between conditions.
Download reference data
First, we will run a specific analysis, to see which ligand-receptor interactions are most likely to explain gene-expression differences in T-cells, since Abatacept is supposed to inhibit T-cell activation.
As a first step, we download the Nichenet reference data.
# Only download this file once, then store it locally
nichenet_human <- here("../references/ligand_target_matrix.rds")
# if(file.exists(nichenet_human)){
ligand_target_matrix <- readRDS(nichenet_human)
# }else{
# ligand_target_matrix = readRDS(url("https://zenodo.org/record/3260758/files/ligand_target_matrix.rds"))
# saveRDS(ligand_target_matrix,nichenet_human)
# }## Load other references for NichenetR
lr_network = readRDS(here("../references/lr_network.rds"))
weighted_networks = readRDS(here("../references/weighted_networks.rds"))Load DE gene and pathway list
We will load both DE gene tables and pathway analysis results. Since the DE gene power is very limited, we may want to focus on the pathway resultsa bit more.
de_genes <- fread(here("../results/3_DE_genes.merged_wilcox_pseudobulk.tsv"))
de_paths <- fread(here("../results/pathway_enrichment.GSEA_Hallmark.all_res.tsv"))
gene.sets <- getGeneSets(species = "Mus musculus", library = c("H"))Activated Fibroblast receiver, all other cells sender
nichenet_fibact_obj <- here("../results/nichenet_fibact.object.rds")
if(!file.exists(nichenet_fibact_obj)){
nichenet_output_fib_act = nichenet_seuratobj_aggregate(
seurat_obj = seurat_object,
receiver = c("Fib_act"),
condition_colname = "group",
condition_oi = "treatment", condition_reference = "control",
sender = "all",
ligand_target_matrix = ligand_target_matrix, lr_network = lr_network,
weighted_networks = weighted_networks,
organism = "mouse")
saveRDS(nichenet_output_fib_act,
file = nichenet_fibact_obj)
}else{
nichenet_output_fib_act <- readRDS( nichenet_fibact_obj)
}

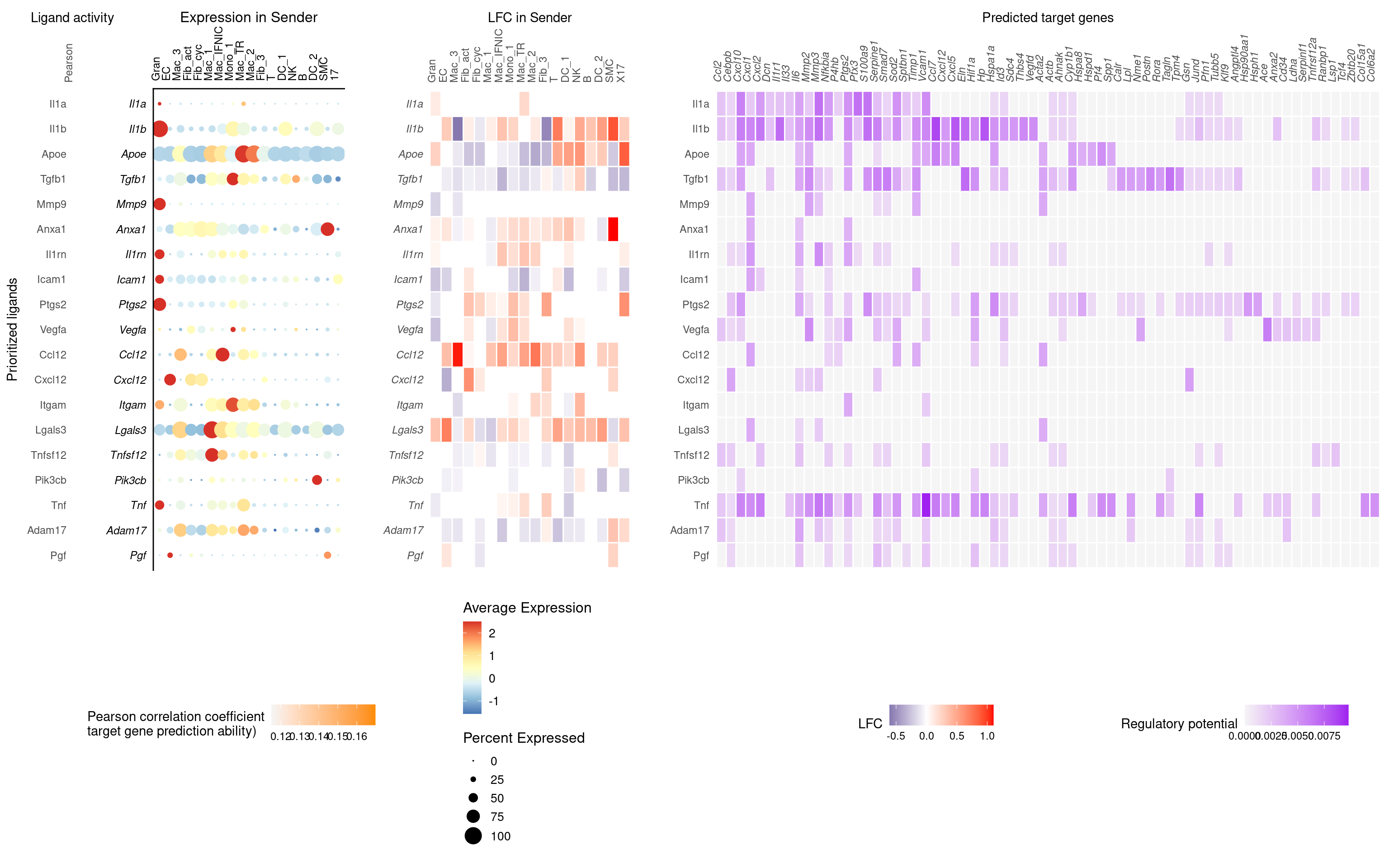

# Plot results
nichenet_output_fib_act$ligand_activity_target_heatmap

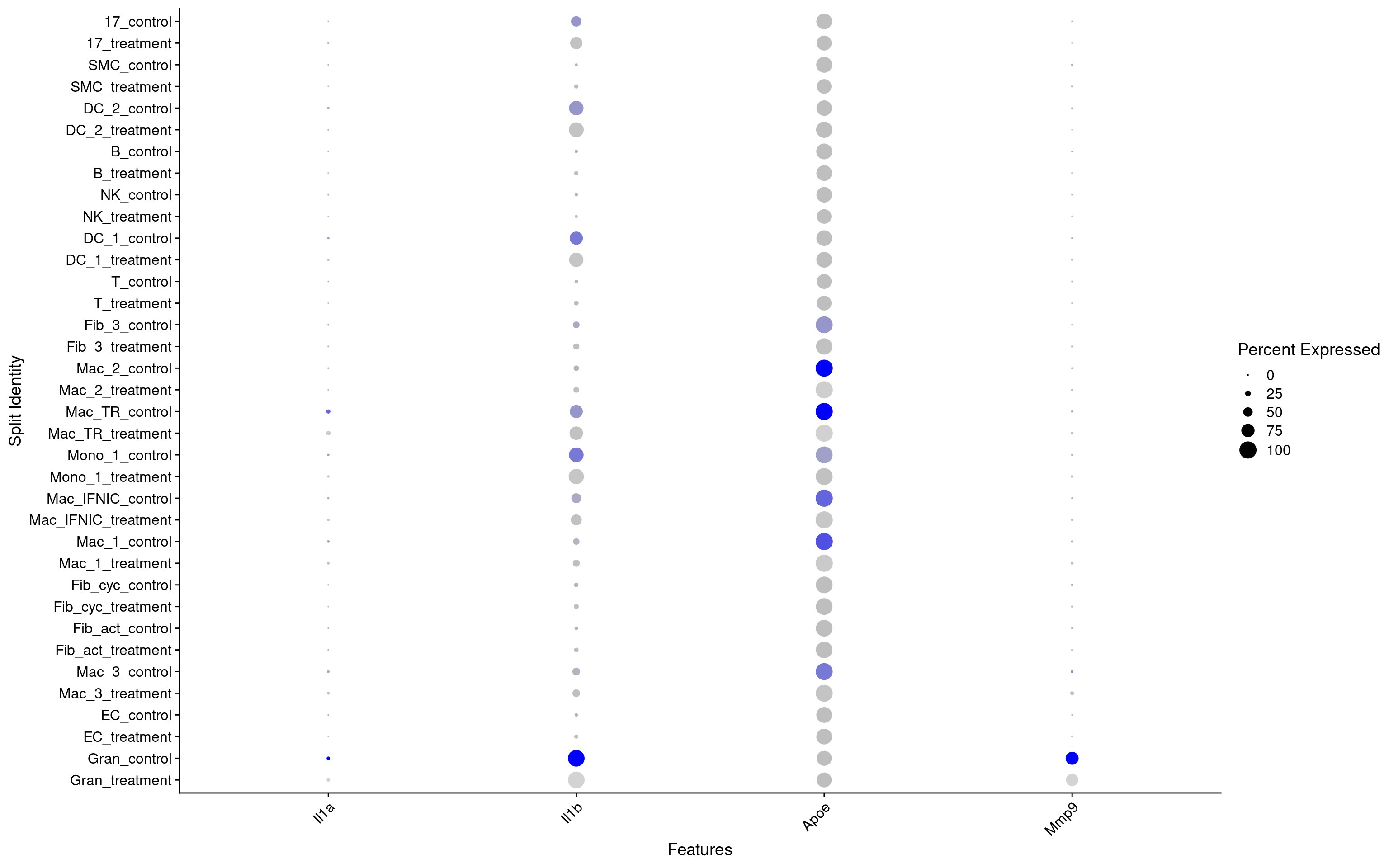

DotPlot(seurat_object, features = c("Il1a","Il1b","Apoe","Mmp9"), split.by = "group") + RotatedAxis()
T-cells receiver, all other cells sender
nichenet_tcell_obj <- here("../results/nichenet_tcell.object.rds")
if(!file.exists(nichenet_tcell_obj)){
nichenet_output_tcell = nichenet_seuratobj_aggregate(
seurat_obj = seurat_object,
receiver = c("T"),
condition_colname = "group",
condition_oi = "treatment", condition_reference = "control",
sender = "all",
ligand_target_matrix = ligand_target_matrix,
lr_network = lr_network,
weighted_networks = weighted_networks,
organism = "mouse")
saveRDS(nichenet_output_tcell,
file = nichenet_tcell_obj)
}else{
nichenet_output_tcell <- readRDS( nichenet_tcell_obj)
}

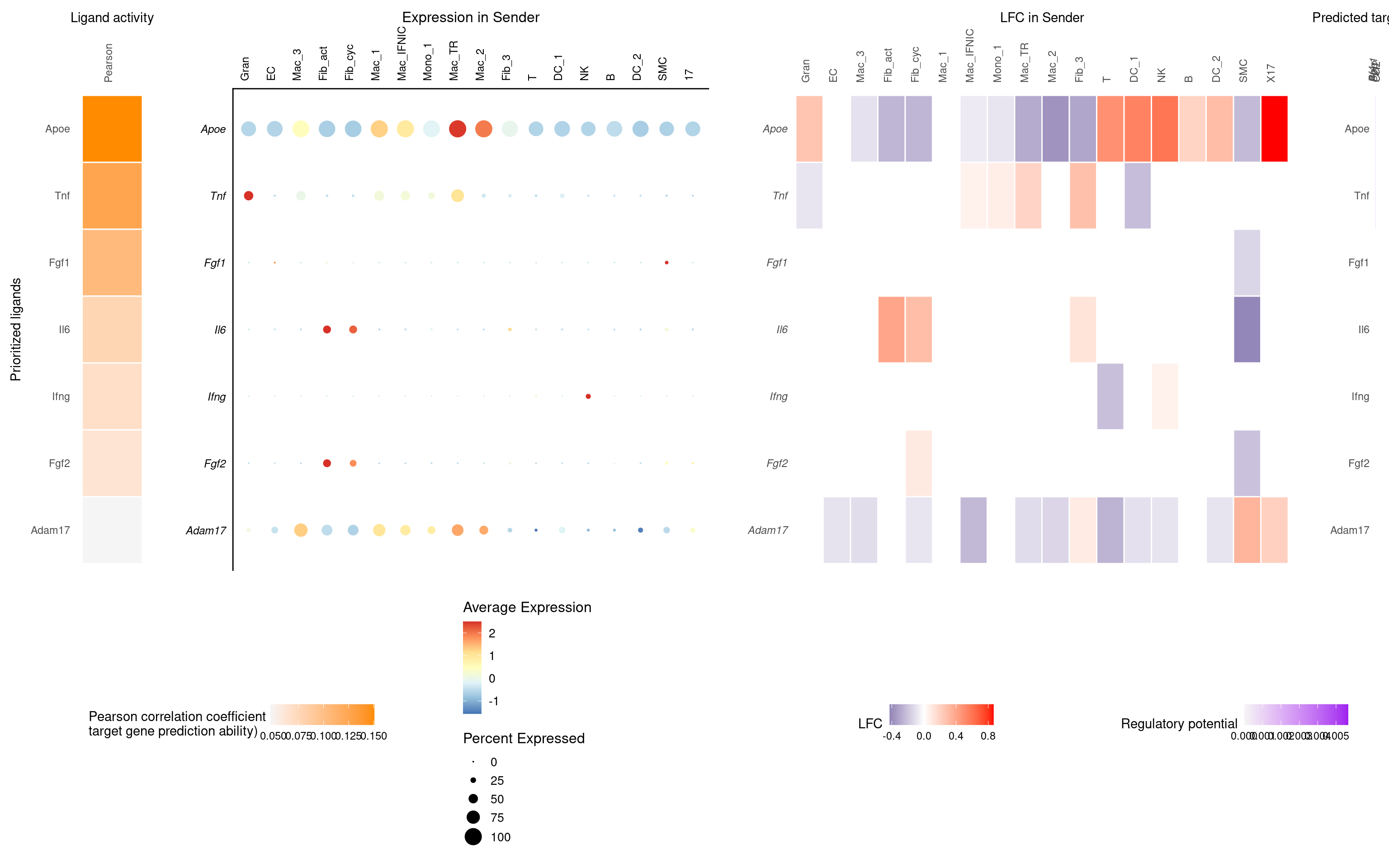

nichenet_output_tcell$ligand_activity_target_heatmap

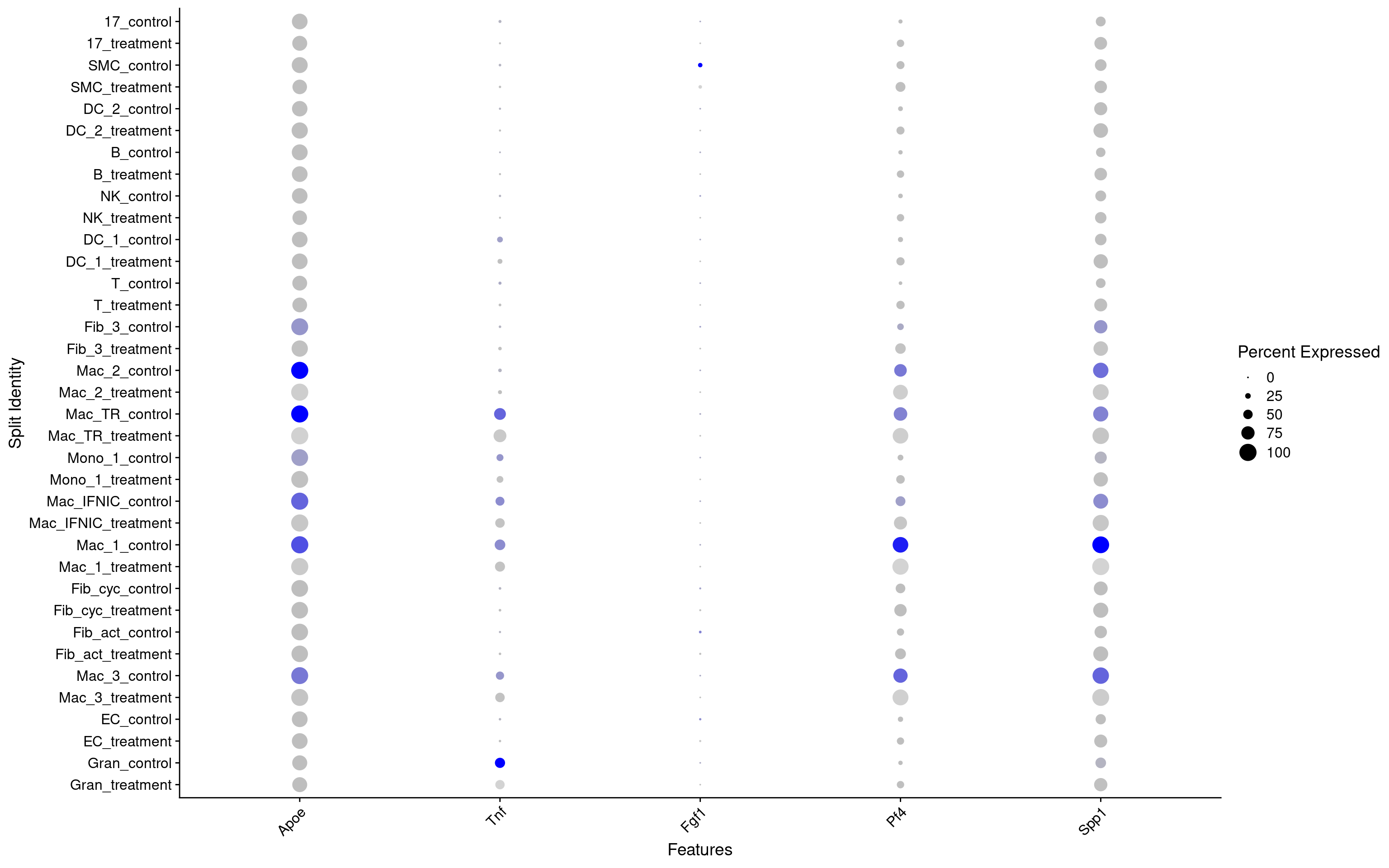

DotPlot(seurat_object, features = c("Apoe","Tnf","Fgf1","Pf4","Spp1"), split.by = "group") + RotatedAxis()
